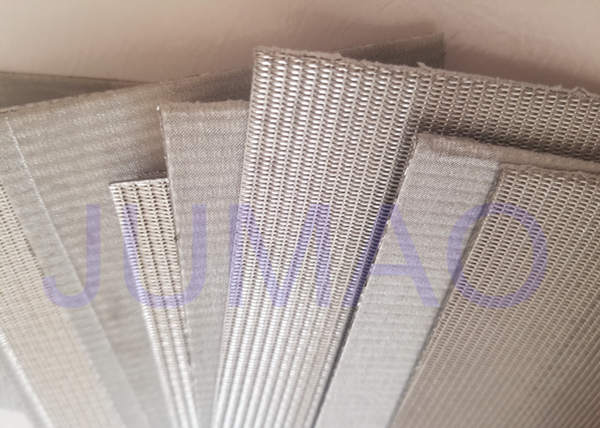

316L Sintered Wire Mesh For Stainless Steel Filter Screen Packs and
Discs
Jumao sintered wire mesh filters are usually used for purification
and filtration of liquid and gas, separation and recovery of solid
particle, transpiration cooling under extremity high temperature,
control air flow distribution, enhancement of heat and mass
transfer, noise reduction, current limitation, and wildly used in
aerospace, petrochemical industry, pharmaceutical industry,
environmental protection industry.
Sintered Wire Mesh Specification Charts
Micron rating | Layers | Net thickness | Weight sq per ft |
1 | 5 | .0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
2 | 3 | 0.0223 in | 0.56642 mm | 0.5800 lb | 0.2633 kg |
2 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
5 | 1 | 0.0058 in | 0.14732 mm | 0.2500 lb | 0.1135 kg |
5 | 2 | 0.009 in | 0.2286 mm | 0.2500 lb | 0.1135 kg |
5 | 3 | 0.0247 in | 0.62738 mm | 0.6400 lb | 0.2906 kg |
5 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
10 | 2 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
10 | 3 | 0.0284 in | 0.72136 mm | 0.6400 lb | 0.2906 kg |
10 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
15 | 3 | 0.0247 inch | 0.62738 mm | 0.5900 lb | 0.2679 kg |
15 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
20 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
25 | 3 | 0.0339 in | 0.86106 mm | 0.6250 lb | 0.2838 kg |
25 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
30 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
40 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
44 | 2 | 0.0144 in | 0.36576 mm | 0.2800 lb | 0.1271 kg |
44 | 2 | 0.036 in | 0.9144 mm | 0.4600 lb | 0.2088 kg |
44 | 3 | 0.0246 in | 0.62484 mm | 0.5200 lb | 0.2361 kg |
50 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
55 | 2 | 0.037 in | 0.9398 mm | 0.4600 lb | 0.2088 kg |
55 | 3 | 0.0245 in | 0.6223 mm | 0.5200 lb | 0.2361 kg |
74 | 3 | 0.0253 in | 0.64262 mm | 0.5400 lb | 0.2452 kg |
74 | 3 | 0.0287 in | 0.72898 mm | 0.4400 lb | 0.1998 kg |
75 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
100 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
105 | 2 | 0.0195 in | 0.4953 mm | 0 | 0 |
105 | 2 | 0.0195 in | 0.4953 mm | 0.3700 lb | 0.1680 kg |
105 | 3 | 0.0259 in | 0.65786 mm | 0.5500 lb | 0.2497 kg |
120 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
140 | 2 | 0.0379 in | 0.96266 mm | 0 | 0 |
140 | 2 | 0.0202 in | 0.51308 mm | 0.3800 lb | 0.1725 kg |
140 | 3 | .0302 in | .76708 mm | .6200 lb | .2815 kg |
178 | 1 | 0.0088 in | 0.22352 mm | 0.1700 lb | 0.0772 kg |
234 | 1 | .0125 inch | .3175 mm | .2400 lb | .1090 kg |
279 | 1 | 0.0144 in | 0.36576 mm | 0.2900 lb | 0.1317 kg |
380 | 1 | 0.0147 in | 0.37338 mm | 0.2800 lb | 0.1271 kg |
540 | 1 | 0.0155 in | 0.3937 mm | 0.3000 lb | 0.1362 kg |
860 | 1 | 0.0238 in | 0.60452 mm | 0.3500 lb | 0.1589 kg |
864 | 2 | 0.032 in | 0.8128 mm | 0 | 0 |
1905 | 1 | – | – | 0.1700 lb | 0.0772 kg |
2460 | 1 | 0.0397 in | 1.00838 mm | 0.4200 lb | 0.1907 kg |
JUMAO main products include:
Five-layer sintered wire mesh, Sintered wire mesh laminate,
Sintered wire mesh with perforated metal, Sintered metal filter
cartridge, Sintered metal filter disc, Pleated sintered mesh
filter, Sintered cone filter, Sintered metal fiber felt.
Typical applications Of Sintered Wire Mesh
· Powder fluidisation
· Liquid applications
· Slurry oils
· Steam filtration
o Culinary steam
o Process steam.
Features and benefits of sintered wire mesh
· Fabricated shapes without expensive support structures or joining
strips. Offers robust and self-supporting structures
· Can be cleaned repeatedly. Suitable for reuse; providing an
economical choice
· Non-shedding media. Provides resistance to mechanical abrasion
· Easily custom-engineered. To meet required specifications of
materials, strength, flow requirements, thickness, micron rating
and environment.
